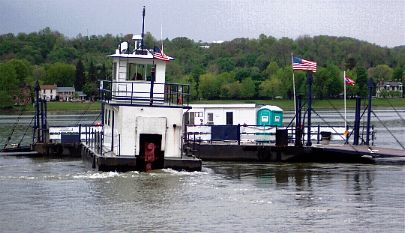

Ferry Boat Propulsion Drive

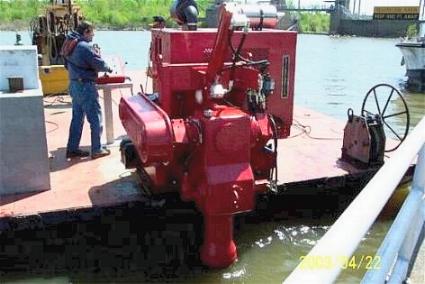

Barge Propulsion Drive SW3150



Marine Propulsion Outboard Drives
Harbormaster Marine Propulsion Outboard Drives are self-contained Boat & Barge propulsion systems. Harbormaster developed the first heavy-duty marine propulsion outboard drive more than 50 years ago. These economical and easily moved power packages have met critical worldwide needs ever since. They have propelled everything from landing craft to ferry boats to coal barges. Our engineering staff has continually redesigned and updated these proven workhorses with the latest technology and materials, making them even more versatile and reliable. The design is simplicity itself. A complete engine/drive/steering system that mounts on the deck of a boat or barge. No need for a separate engine room, through-hull shafting, fuel tank or control station. Fasten it in place, fill it with fuel and you are underway. You can easily move it to another vessel if necessary.



MARINE OUTBOARD DRIVE SPECIFICATIONS AND DIMENSIONS
Series Power
Range
Input
Speed Range
Propeller
Diameter
Propeller
Speed Range
Approximate Weight(Dry)
2000 60-120 HP 1800-2800 RPM 30-40 IN 538-660 RPM 6000 LBS
45-90 KW 600-1016 MM 2722 KG
3000 120-200 HP 1800-2500 RPM 36-44 IN 435-587 RPM 7710 LBS
90-149 KW 914-1117 MM 3497 KG
 To view additional Marine Outboard Drive specifications, click on the Series link ABOVE.


  HARBORMASTERMARINE OUTBOARD DRIVE BROCHURE (PDF Format)

  MARINE OUTBOARD DRIVE INSTALLATION DRAWINGS (PDF Format)
  SERIES SERIES
  SWR2000 SWR3000
  SWR2001 SWR3001

  Harbormaster SW2080 80HP Outboard Drive

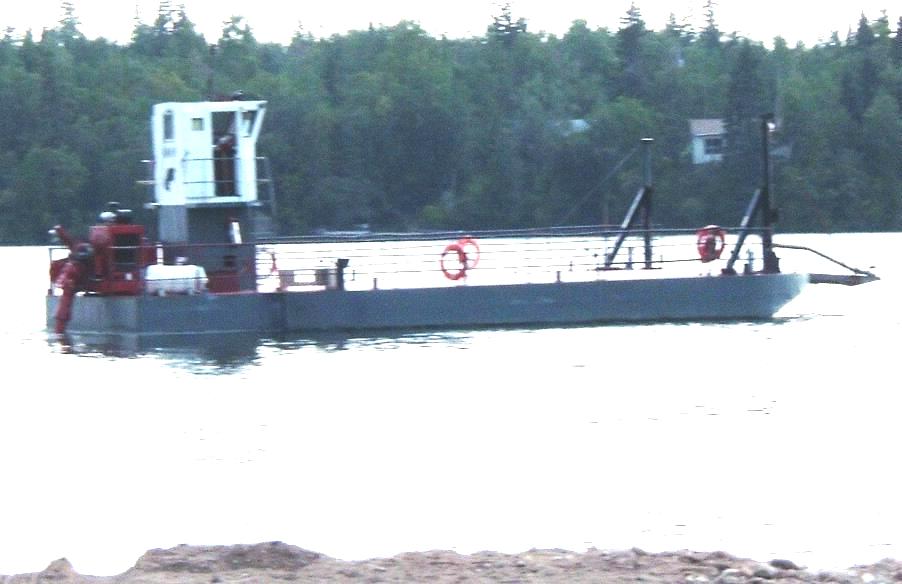

50ft x 24ft Ferry Barge

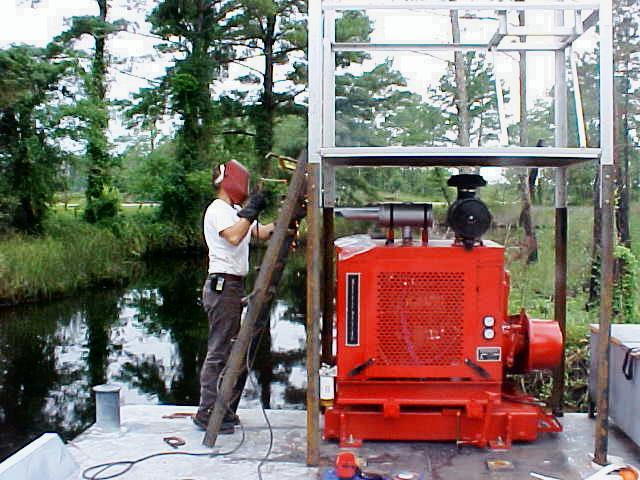

Installation of a Harbormaster SW2080
on a 50ft x 16ft Work Flat Barge
